Windows 10/11 version 21H2 and Windows Server 2022 not updating due to the size of the WinRE partition

Posted on February 22, 2024 by ncbrady

Introduction

I read a tweet today which reminded me that I’ve seen Windows 11 (version 21H2) and Windows Server 2022 (version 21H2) computers failing to update to a January 2024 Security Update with the following error.

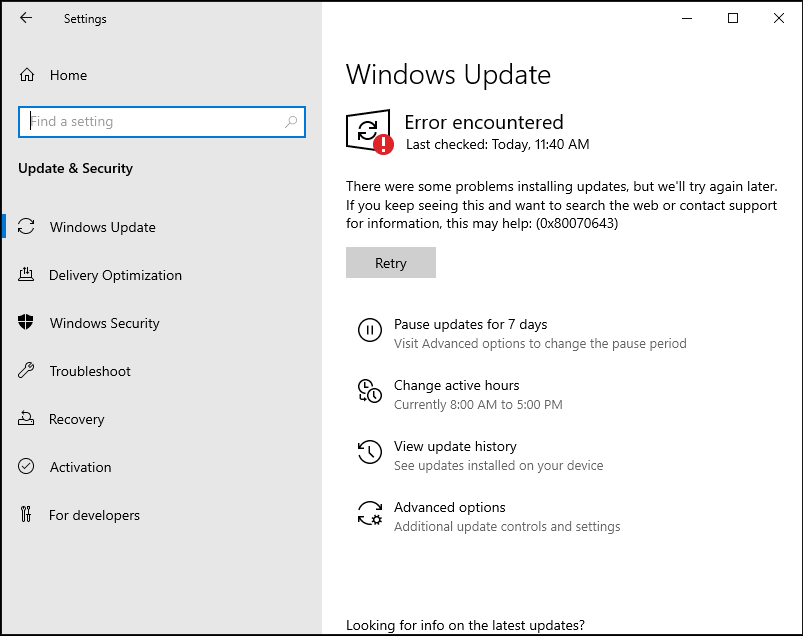

There were some problems installing updates, but we’ll try again later. If you keep seeing this and want to search the web or contact support for information, this may help: (0x80070643)

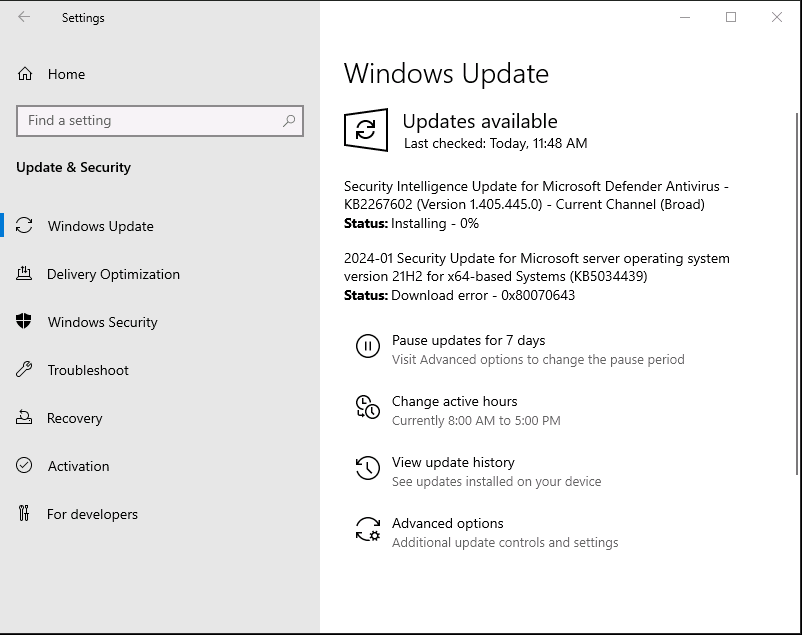

Retrying shows the same thing again, except this time it lists a download error.

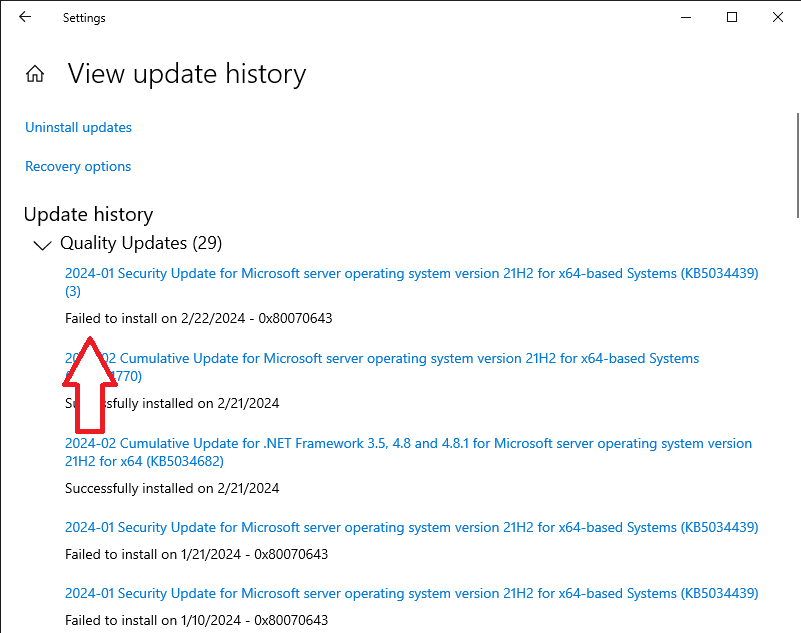

Like most Windows update errors the error code is pretty meaningless without access to a search engine, or alternatively click on ‘View update history’

and then click on the failed update, in this case it was 2024-01 Security Update for Microsoft server operating system version 21H2 for x64-based Systems (KB5034439).

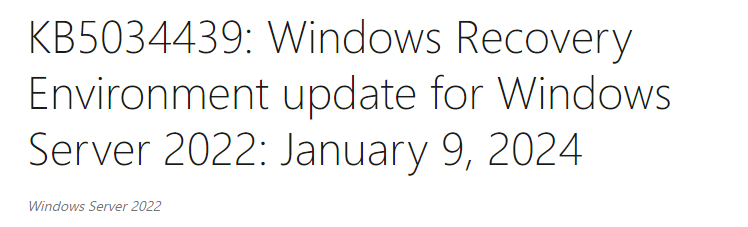

Clicking that, brought up the following useful heading in Edge.

Here’s the direct link to that KB article.

In there it explains the importance of why you need this update, listed below.

This update automatically applies Safe OS Dynamic Update (KB5034235) to the Windows Recovery Environment (WinRE) on a running PC to address a security vulnerability that could allow attackers to bypass BitLocker encryption by using WinRE. For more information, see CVE-2024-20666.

Interestingly, my Server OS is not BitLockered, but this security update is required anyway.

It also explains what the minimum FREE size that the Windows RE partition needs to be and the error you’ll get if that requirement is not met.

This update requires 250 MB of free space in the recovery partition to install successfully. If the recovery partition does not have sufficient free space, this update will fail. In this case, you will receive the following error message:

0x80070643 – ERROR_INSTALL_FAILURE

So far so good! an informative KB.

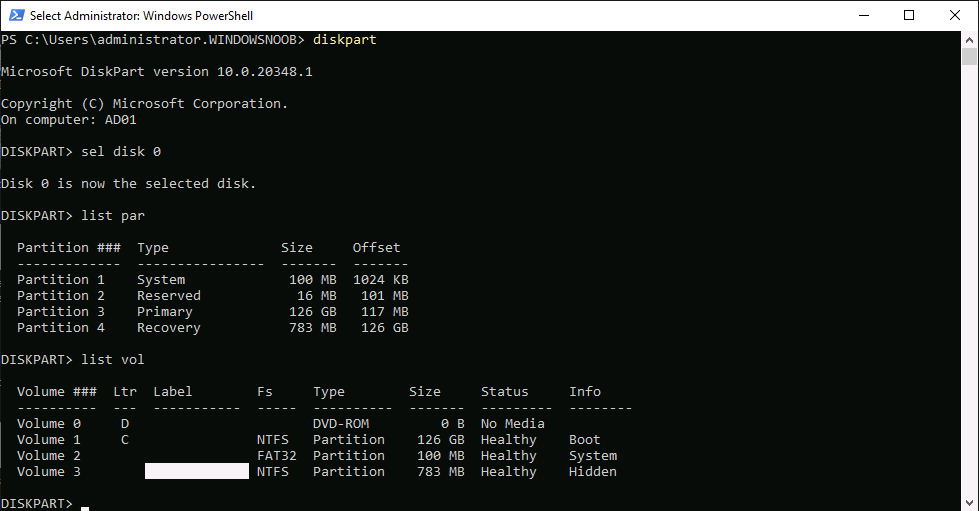

But why is this happening ? Windows installs including and before Windows 11 21h2/Windows Server 2022 had recovery partitions sizes that were too small.

The fix is you need to extend the Windows Recovery Environment partition size. That partition is used for restoring access to Windows when it has boot failures (for whatever reason), so it’s pretty important that it’s working correctly.

Note: On Reddit some users have reported increasing the free space from 250MB to 500MB.

As I’ve many servers in my lab that need updating (and fixing) and affected Windows 11 clients, I needed to test the solution.

That manual fix is here and is a PowerShell script, listed below.

Param (
[Parameter(Mandatory=$false,HelpMessage="Skip confirmation")][bool]$SkipConfirmation=$false,
[Parameter(Mandatory=$true,HelpMessage="Path to backup old WinRE partition content to")][string]$BackupFolder
)
# ------------------------------------
# Helper functions
# ------------------------------------
# Log message
function LogMessage([string]$message)
{
$message = "$message"
Write-Host $message
}
# Extract numbers from string
function ExtractNumbers([string]$str)
{
$cleanString = $str -replace "[^0-9]"
return [long]$cleanString
}
# Display partition info using fsutil
# Return an array, the first value is total size and the second value is free space
function DisplayPartitionInfo([string[]]$partitionPath)
{
$volume = Get-WmiObject -Class Win32_Volume | Where-Object { $partitionPath -contains $_.DeviceID }
LogMessage(" Partition capacity: " + $volume.Capacity)
LogMessage(" Partition free space: " + $volume.FreeSpace)
return $volume.Capacity, $volume.FreeSpace
}
# Display WinRE status
function DisplayWinREStatus()
{
# Get WinRE partition info
$WinREInfo = Reagentc /info
foreach ($line in $WinREInfo)
{
$params = $line.Split(':')
if ($params.Count -lt 2)
{
continue
}
if (($params[1].Trim() -ieq "Enabled") -Or (($params[1].Trim() -ieq "Disabled")))
{
$Status = $params[1].Trim() -ieq "Enabled"
LogMessage($line.Trim())
}
if ($params[1].Trim() -like "\\?\GLOBALROOT*")
{
$Location = $params[1].Trim()
LogMessage($line.Trim())
}
}

return $Status, $Location
}
# ------------------------------------
# Main execution
# ------------------------------------
# Clear the error
$Error.Clear()
# ------------------------------------
# Examining the system to collect required info
# for the execution
# Need to check WinRE status, collect OS and WinRE
# partition info
# ------------------------------------
LogMessage("Start time: $([DateTime]::Now)")
LogMessage("Examining the system...")
$NeedShrink = $true
$NeedCreateNew = $false
$NeedBackup = $false
# Get WinRE partition info
$InitialWinREStatus = DisplayWinREStatus
$WinREStatus = $InitialWinREStatus[0]
$WinRELocation = $InitialWinREStatus[1]
if (!$WinREStatus)
{
LogMessage("Error: WinRE Disabled")
exit 1
}
# Get System directory and ReAgent xml file
$system32Path = [System.Environment]::SystemDirectory
LogMessage("System directory: " + $system32Path)
$ReAgentXmlPath = Join-Path -Path $system32Path -ChildPath "\Recovery\ReAgent.xml"
LogMessage("ReAgent xml: " + $ReAgentXmlPath)
if (!(Test-Path $ReAgentXmlPath))
{
LogMessage("Error: ReAgent.xml cannot be found")
exit 1
}
# Get OS partition
LogMessage("")
LogMessage("Collecting OS and WinRE partition info...")
$OSDrive = $system32Path.Substring(0,1)
$OSPartition = Get-Partition -DriveLetter $OSDrive
# Get WinRE partition
$WinRELocationItems = $WinRELocation.Split('\\')
foreach ($item in $WinRELocationItems)
{
if ($item -like "harddisk*")
{
$OSDiskIndex = ExtractNumbers($item)
}
if ($item -like "partition*")
{
$WinREPartitionIndex = ExtractNumbers($item)
}
}
LogMessage("OS Disk: " + $OSDiskIndex)
LogMessage("OS Partition: " + $OSPartition.PartitionNumber)
LogMessage("WinRE Partition: " + $WinREPartitionIndex)
$WinREPartition = Get-Partition -DiskNumber $OSDiskIndex -PartitionNumber $WinREPartitionIndex
$diskInfo = Get-Disk -number $OSDiskIndex
$diskType = $diskInfo.PartitionStyle
LogMessage("Disk PartitionStyle: " + $diskType)
# Display WinRE partition size info
LogMessage("WinRE partition size info")
$WinREPartitionSizeInfo = DisplayPartitionInfo($WinREPartition.AccessPaths)
LogMessage("WinRE Partition Offset: " + $WinREPartition.Offset)
LogMessage("WinRE Partition Type: " + $WinREPartition.Type)
LogMessage("OS partition size: " + $OSPartition.Size)
LogMessage("OS partition Offset: " + $OSPartition.Offset)
$OSPartitionEnds = $OSPartition.Offset + $OSPartition.Size
LogMessage("OS partition ends at: " + $OSPartitionEnds)
LogMessage("WinRE partition starts at: " + $WinREPartition.Offset)
$WinREIsOnSystemPartition = $false
if ($diskType -ieq "MBR")
{
if ($WinREPartition.IsActive)
{
LogMessage("WinRE is on System partition")
$WinREIsOnSystemPartition = $true
}
}
if ($diskType -ieq "GPT")
{
if ($WinREPartition.Type -ieq "System")
{
LogMessage("WinRE is on System partition")
$WinREIsOnSystemPartition = $true
}
}
# Checking the BackupFolder parameter
if ($PSBoundParameters.ContainsKey('BackupFolder'))
{
LogMessage("")
LogMessage("Backup Directory: [" + $BackupFolder + "]")

$Needbackup = $true

if ($WinREIsOnSystemPartition)
{
$Needbackup = $false
LogMessage("WinRE is on System partition which will be preserved. No need to backup content")
}
else
{
if (Test-path $BackupFolder)
{
$items = Get-ChildItem -Path $BackupFolder
if ($items)
{
LogMessage("Error: Existing backup directory is not empty")
exit 1
}
}
else
{
LogMessage("Creating backup directory...")
try
{
$item = New-Item -Path $BackupFolder -ItemType Directory -ErrorAction Stop
if ($item)
{
LogMessage("Backup directory created")
}
else
{
LogMessage("Error: Failed to create backup directory [" + $BackupFolder + "]")
exit 1
}
} catch
{
LogMessage("Error: An error occurred: $_")
exit 1
}
}
}
}
# ------------------------------------
# Verify whether we meet requirements of execution
# - WinRE cannot be on OS partition for the extension
# - WinRE partition must be the next partition after OS partition
# - If WinRE partition already have >=250MB free space, no need to do repartition
# - If there is enough unallocated space to grow the WinRE partition size, skip shrinking OS
#
# However, if the WinRE partition is before the OS partition, there is no chance to extend it
# As a result, it's better to create a new WinRE partition after the OS partition
# ------------------------------------
# Perform a few checks
LogMessage("")
LogMessage("Verifying if the WinRE partition needs to be extended or not...")
if (!(($diskType -ieq "MBR") -Or ($diskType -ieq "GPT")))
{
LogMessage("Error: Got an unexpected disk partition style: " +$diskType)
exit 1
}
# WinRE partition must be after OS partition for the repartition
if ($WinREPartitionIndex -eq $OSPartition.PartitionNumber)
{
LogMessage("WinRE and OS are on the same partition, should not perform extension")
exit 0
}
$supportedSize = Get-PartitionSupportedSize -DriveLetter $OSDrive
# if there is enough free space, skip extension
if ($WinREPartitionSizeInfo[1] -ge 250MB)
{
LogMessage("More than 250 MB of free space was detected in the WinRE partition, there is no need to extend the partition")
exit 0
}
if ($WinREPartition.Offset -lt $OSPartitionEnds)
{
LogMessage("WinRE partition is not after OS partition, cannot perform extension")
LogMessage("Need to create a new WinRE partition after OS partition")
$NeedCreateNew = $true
$NeedShrink = $true

# Calculate the size of repartition
# Will create a new WinRE partition with current WinRE partition size + 250 MB
# The OS partition size will be shrunk by the new WinRE partition size
$targetWinREPartitionSize = $WinREPartitionSizeInfo[0] + 250MB
$shrinkSize = [Math]::Ceiling($targetWinREPartitionSize / 1MB) * 1MB
$targetOSPartitionSize = $OSPartition.Size - $shrinkSize
if ($targetOSPartitionSize -lt $supportedSize.SizeMin)
{
LogMessage("Error: The target OS partition size after shrinking is smaller than the supported minimum size, cannot perform the repartition")
exit 1
}
}
else
{
if ($WinREIsOnSystemPartition)
{
LogMessage("WinRE parititon is after the OS partition and it's also System partition")
LogMessage("Error: Got unexpected disk layout, cannot proceed")
exit 1
}
if (!($WinREPartitionIndex -eq ($OSPartition.PartitionNumber + 1)))
{
LogMessage("Error: WinRE partition is not right after the OS partition, cannot extend WinRE partition")
exit 1
}
# Calculate the size of repartition
# Will shrink OS partitition by 250 MB
$shrinkSize = 250MB
$targetOSPartitionSize = $OSPartition.Size - $shrinkSize
$targetWinREPartitionSize = $WinREPartitionSizeInfo[0] + 250MB
$UnallocatedSpace = $WinREPartition.Offset - $OSPartitionEnds;
# If there is unallocated space, consider using it
if ($UnallocatedSpace -ge 250MB)
{
$UnallocatedSpace = $WinREPartition.Offset - $OSPartitionEnds;
LogMessage("Found unallocated space between OS and WinRE partition: " + $UnallocatedSpace)
LogMessage("There is already enough space to extend WinRE partition without shrinking the OS partition")
$NeedShrink = $false
$targetOSPartitionSize = 0
}
else
{
$shrinkSize = [Math]::Ceiling((250MB - $UnallocatedSpace)/ 1MB) * 1MB
if ($shrinkSize > 250MB)
{
$shrinkSize = 250MB
}
$targetOSPartitionSize = $OSPartition.Size - $shrinkSize
if ($targetOSPartitionSize -lt $supportedSize.SizeMin)
{
LogMessage("Error: The target OS partition size after shrinking is smaller than the supported minimum size, cannot perform the repartition")
exit 1
}
}
}
# ------------------------------------
# Report execution plan and ask for user confirmation to continue
# ------------------------------------
# Report the changes planned to be executed, waiting for user confirmation
LogMessage("")
LogMessage("Summary of proposed changes")
if ($NeedCreateNew)
{
LogMessage("Note: WinRE partition is before OS partition, need to create a new WinRE partition after OS partition")
LogMessage("Will shrink OS partition by " + $shrinkSize)
LogMessage(" Current OS partition size: " + $OSPartition.Size)
LogMessage(" Target OS partition size after shrinking: " + $targetOSPartitionSize)
LogMessage("New WinRE partition will be created with size: ", $targetWinREPartitionSize)
if ($WinREIsOnSystemPartition)
{
LogMessage("Existing WinRE partition is also system partition, it will be preserved")
}
else
{
LogMessage("Existing WinRE partition will be deleted")
LogMessage(" WinRE partition: Disk [" + $OSDiskIndex + "] Partition [" + $WinREPartitionIndex + "]")
LogMessage(" Current WinRE partition size: " + $WinREPartitionSizeInfo[0])
}
}
else
{
if ($NeedShrink)
{
LogMessage("Will shrink OS partition by " + $shrinkSize)
LogMessage(" Current OS partition size: " + $OSPartition.Size)
LogMessage(" Target OS partition size after shrinking: " + $targetOSPartitionSize)
if ($UnallocatedSpace -ge 0)
{
LogMessage("Unallocated space between OS and WinRE partition that will be used towards the new WinRE partition: " + $UnallocatedSpace)
}
}
else
{
LogMessage("Will use 250MB from unallocated space between OS and WinRE partition")
}
LogMessage("Will extend WinRE partition size by 250MB")
LogMessage(" WinRE partition: Disk [" + $OSDiskIndex + "] Partition [" + $WinREPartitionIndex + "]")
LogMessage(" Current WinRE partition size: " + $WinREPartitionSizeInfo[0])
LogMessage(" New WinRE partition size: " + $targetWinREPartitionSize)
LogMessage("WinRE will be temporarily disabled before extending the WinRE partition and enabled automatically in the end")
if ($UnallocatedSpace -ge 100MB)
{
LogMessage("Warning: More than 100MB of unallocated space was detected between the OS and WinRE partitions")
LogMessage("Would you like to proceed by using the unallocated space between the OS and the WinRE partitions?")
}
}
if ($Needbackup)
{
LogMessage("")
LogMessage("The contents of the old WinRE partition will be backed up to [" + $BackupFolder + "]")
}
LogMessage("")
LogMessage("Please reboot the device before running this script to ensure any pending partition actions are finalized")
LogMessage("")
if ($SkipConfirmation)
{
LogMessage("User chose to skip confirmation")
LogMessage("Proceeding with changes...")
}
else
{
$userInput = Read-Host -Prompt "Would you like to proceed? Y for Yes and N for No"

if ($userInput -ieq "Y")
{
LogMessage("Proceeding with changes...")
}
elseif ($userInput -ieq "N")
{
LogMessage("Canceling based on user request, no changes were made to the system")
exit 0
}
else
{
LogMessage("Error: Unexpected user input: [" + $userInput + "]")
exit 0
}
}
LogMessage("")
LogMessage("Note: To prevent unexpected results, please do not interrupt the execution or restart your system")
# ------------------------------------
# Do the actual execution
# The main flow is:
# 1. Check whether ReAgent.xml has stage location and clear it for repartiion
# 2. Disable WinRE as WinRE partition will be deleted
# 3. Perform the repartition to create a larger WinRE partition
# 4. Re-enable WinRE
# ------------------------------------
LogMessage("")
# Load ReAgent.xml to clear Stage location
LogMessage("Loading [" + $ReAgentXmlPath + "] ...")
$xml = [xml](Get-Content -Path $ReAgentXmlPath)
$node = $xml.WindowsRE.ImageLocation
if (($node.path -eq "") -And ($node.guid -eq "{00000000-0000-0000-0000-000000000000}") -And ($node.offset -eq "0") -And ($node.id -eq "0"))
{
LogMessage("Stage location info is empty")
}
else
{
LogMessage("Clearing stage location info...")
$node.path = ""
$node.offset = "0"
$node.guid= "{00000000-0000-0000-0000-000000000000}"
$node.id="0"
# Save the change
LogMessage("Saving changes to [" + $ReAgentXmlPath + "]...")
$xml.Save($ReAgentXmlPath)
}
# Disable WinRE
LogMessage("Disabling WinRE...")
reagentc /disable
if (!($LASTEXITCODE -eq 0))
{
LogMessage("Warning: encountered an error when disabling WinRE: " + $LASTEXITCODE)
exit $LASTEXITCODE
}
# Verify WinRE is under C:\Windows\System32\Recovery\WinRE.wim
$disableWinREPath = Join-Path -Path $system32Path -ChildPath "\Recovery\WinRE.wim"
LogMessage("Verifying that WinRE wim exists in downlevel at default location")
if (!(Test-Path $disableWinREPath))
{
LogMessage("Error: Cannot find " + $disableWinREPath)

# Re-enable WinRE
LogMessage("Re-enabling WinRE on error...")
reagentc /enable
if (!($LASTEXITCODE -eq 0))
{
LogMessage("Warning: encountered an error when enabling WinRE: " + $LASTEXITCODE)
}
exit 1
}
# ------------------------------------
# Perform the repartition
# 1. Resize the OS partition
# 2. Delete the WinRE partition
# 3. Create a new WinRE partition
# ------------------------------------
LogMessage("Performing repartition to extend the WinRE partition ...")
# 1. Resize the OS partition
if ($NeedShrink)
{
LogMessage("Shrinking the OS partition to create a larger WinRE partition")
LogMessage("Resizing the OS partition to: [" + $targetOSPartitionSize + "]...")
Resize-Partition -DriveLetter $OSDrive -Size $targetOSPartitionSize
if ($Error.Count -gt 0) {
LogMessage("Error: Resize-Partition encountered errors: " + $Error[0].Exception.Message)

# Re-enable WinRE
LogMessage("Re-enabling WinRE on error...")
reagentc /enable
if (!($LASTEXITCODE -eq 0))
{
LogMessage("Warning: encountered an error when enabling WinRE: " + $LASTEXITCODE)
}
exit 1
}
$OSPartitionAfterShrink = Get-Partition -DriveLetter $OSDrive
LogMessage("Target partition size: " + $targetOSPartitionSize)
LogMessage("Size of OS partition after shrinking: " + $OSPartitionAfterShrink.Size)
}
# 2. Delete the WinRE partition
LogMessage("")
if ($WinREIsOnSystemPartition)
{
LogMessage("Existing WinRE partition is System partition, skipping deletion")
}
else
{
# If requested by user, backup rest of the content on WinRE partition to backup directory
if ($Needbackup)
{
$sourcePath = $WinREPartition.AccessPaths[0]
LogMessage("Copying content on WinRE partition from [" + $sourcePath + "] to [" + $BackupFolder + "]...")

# Copy-Item may have access issue with certain system folders, enumerate the children items and exlcude them
$items = Get-ChildItem -LiteralPath $sourcePath -Force
foreach ($item in $items)
{
if ($item.Name -ieq "System Volume Information")
{
continue
}
$sourceItemPath = Join-Path -Path $sourcePath -ChildPath $item.Name
$destItemPath = Join-Path -Path $BackupFolder -ChildPath $item.Name
try
{
LogMessage("Copying [" + $sourceItemPath + "] to [" + $destItemPath + "]...")
Copy-Item -LiteralPath $sourceItemPath -Destination $destItemPath -Recurse -Force
} catch
{
LogMessage("Error: An error occurred during copy: $_")
exit 1
}
}

LogMessage("Backup completed")
LogMessage("")
}
LogMessage("Deleting WinRE partition: Disk [" + $OSDiskIndex + "] Partition [" + $WinREPartitionIndex + "]...")
Remove-Partition -DiskNumber $OSDiskIndex -PartitionNumber $WinREPartitionIndex -Confirm:$false
if ($Error.Count -gt 0) {
LogMessage("Error: Remove-Partition encountered errors: " + $Error[0].Exception.Message)
exit 1
}
}
# A short sleep for the partition change
Sleep 5
# 3. Create a new WinRE partition
LogMessage("")
LogMessage("Creating new WinRE partition...")
LogMessage("Target size: " + $targetWinREPartitionSize)
if ($diskType -ieq "GPT")
{
$partition = New-Partition -DiskNumber $OSDiskIndex -Size $targetWinREPartitionSize -GptType "{de94bba4-06d1-4d40-a16a-bfd50179d6ac}"

$newPartitionIndex = $partition.PartitionNumber
# A short sleep to make sure the partition is ready for formatting
Sleep 2
LogMessage("Formating the partition...")
$result = Format-Volume -Partition $partition -FileSystem NTFS -Confirm:$false
if ($Error.Count -gt 0) {
LogMessage("Error: Format-Volume encountered errors: " + $Error[0].Exception.Message)
exit 1
}
}
else
{
#$partition = New-Partition -DiskNumber $OSDiskIndex -Size $targetWinREPartitionSize -MbrType 0x27
$targetWinREPartitionSizeInMb = [int]($targetWinREPartitionSize/1MB)
$diskpartScript =
@"
select disk $OSDiskIndex
create partition primary size=$targetWinREPartitionSizeInMb id=27
format quick fs=ntfs label="Recovery"
set id=27
"@
$TempPath = $env:Temp
$diskpartSciptFile = Join-Path -Path $TempPath -ChildPath "\ExtendWinRE_MBR_PowershellScript.txt"

LogMessage("Creating temporary diskpart script to create Recovery partition on MBR disk...")
LogMessage("Temporary diskpart script file: " + $diskpartSciptFile)
$diskpartScript | Out-File -FilePath $diskpartSciptFile -Encoding ascii

LogMessage("Executing diskpart script...")
try
{
$diskpartOutput = diskpart /s $diskpartSciptFile

if ($diskpartOutput -match "DiskPart successfully")
{
LogMessage("Diskpart script executed successfully")
}
else
{
LogMessage("Error executing diskpart script:" + $diskpartOutput)
exit 1
}
LogMessage("Deleting temporary diskpart script file...")
Remove-Item $diskpartSciptFile
}
catch
{
LogMessage("Error executing diskpart script: $_")
exit 1
}

$vol = Get-Volume -FileSystemLabel "Recovery"
$newPartitionIndex = (Get-Partition | Where-Object { $_.AccessPaths -contains $vol.Path } ).PartitionNumber
}
if ($Error.Count -gt 0)
{
LogMessage("Error: New-Partition encountered errors: " + $Error[0].Exception.Message)
exit 1
}
LogMessage("New Partition index: " + $newPartitionIndex)
# Re-enable WinRE
LogMessage("Re-enabling WinRE...")
reagentc /enable
if (!($LASTEXITCODE -eq 0))
{
LogMessage("Warning: encountered an error when enabling WinRE: " + $LASTEXITCODE)
exit $LASTEXITCODE
}
# In the end, Display WinRE status to verify WinRE is enabled correctly
LogMessage("")
LogMessage("WinRE Information:")
$FinalWinREStatus = DisplayWinREStatus
$WinREStatus = $FinalWinREStatus[0]
$WinRELocation = $FinalWinREStatus[1]
if (!$WinREStatus)
{
LogMessage("Warning: WinRE Disabled")
}
$WinRELocationItems = $WinRELocation.Split('\\')
foreach ($item in $WinRELocationItems)
{
if ($item -like "partition*")
{
$WinREPartitionIndex = ExtractNumbers($item)
}
}
LogMessage("WinRE Partition Index: " + $WinREPartitionIndex)
$WinREPartition = Get-Partition -DiskNumber $OSDiskIndex -PartitionNumber $WinREPartitionIndex
$WinREPartitionSizeInfoAfter = DisplayPartitionInfo($WinREPartition.AccessPaths)
LogMessage("")
LogMessage("OS Information:")
$OSPartition = Get-Partition -DriveLetter $OSDrive
LogMessage("OS partition size: " + $OSPartition.Size)
LogMessage("OS partition Offset: " + $OSPartition.Offset)
if (!($WinREPartitionIndex -eq $newPartitionIndex))
{
LogMessage("Warning: WinRE is installed to partition [" + $WinREPartitionIndex +"], but the newly created Recovery partition is [" + $newPartitionIndex + "]")
}
LogMessage("End time: $([DateTime]::Now)")
if ($NeedBackup)
{
LogMessage("")
LogMessage("The contents of the old WinRE partition has been backed up to [" + $BackupFolder + "]")
}
LogMessage("")
LogMessage("Successfully completed the operation")

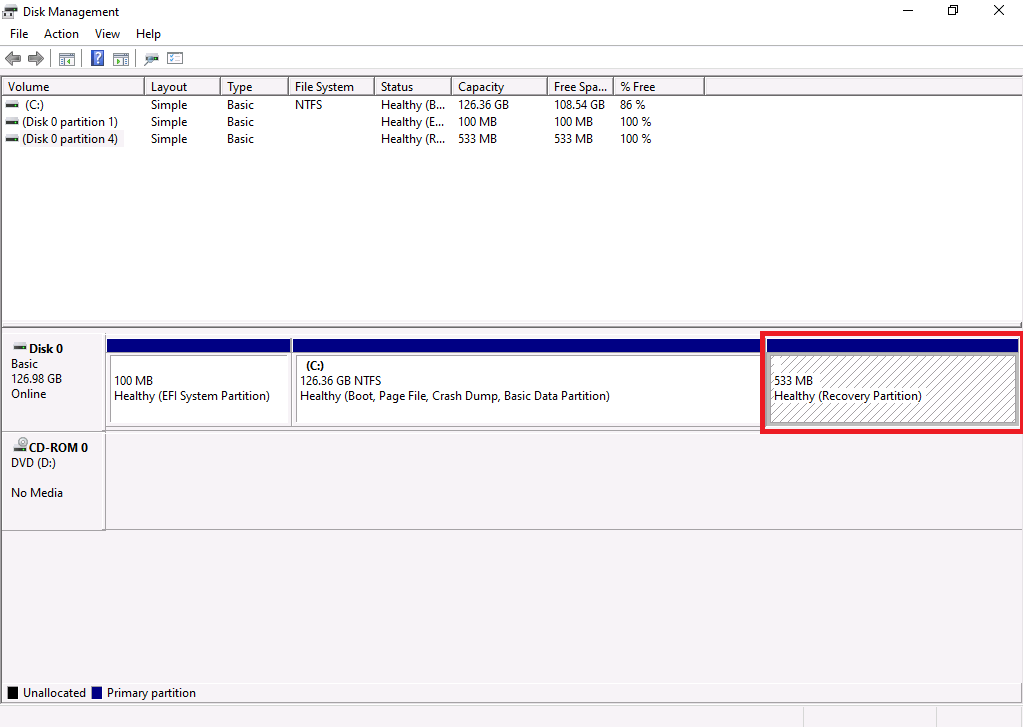

Now that we know what the problem is, and how to fix it manually, let’s do it. But first, let’s look at the Windows Recovery partition on my affected server. Here it is (highlighted in the red box) before applying the fix from Microsoft.

I created a folder called WinRE in C:\Temp and copied the script to that folder. Next, I launched an administrative PowerShell prompt and changed to that folder

C:\Temp\WinRE

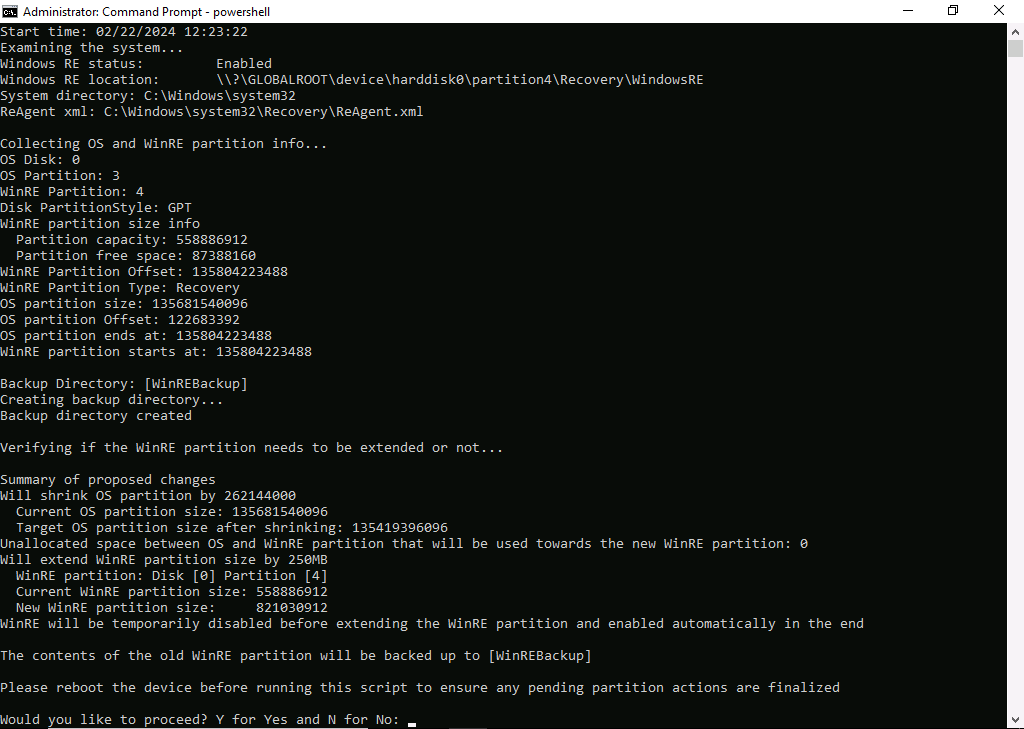

Running the script prompts you for a backup folder for the current Windows RE files. I entered WinREbackup, it will create this folder in the current folder you are in when running the script.

TIP: When prompted for the backup folder, don’t enter a location such as C:\Temp\somefolder as it will fail on line 463.  Instead, simply enter a folder name which can be created in the current  folder you are running the script from.

Answer Y to the prompt and press enter.

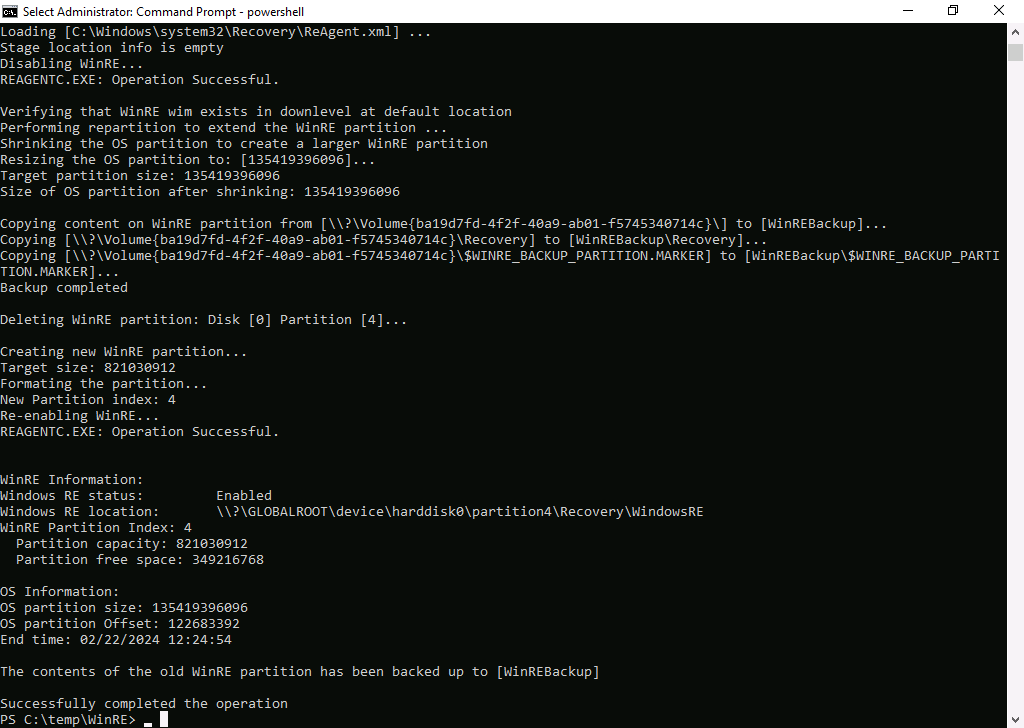

Below you can see the script has completed without error.

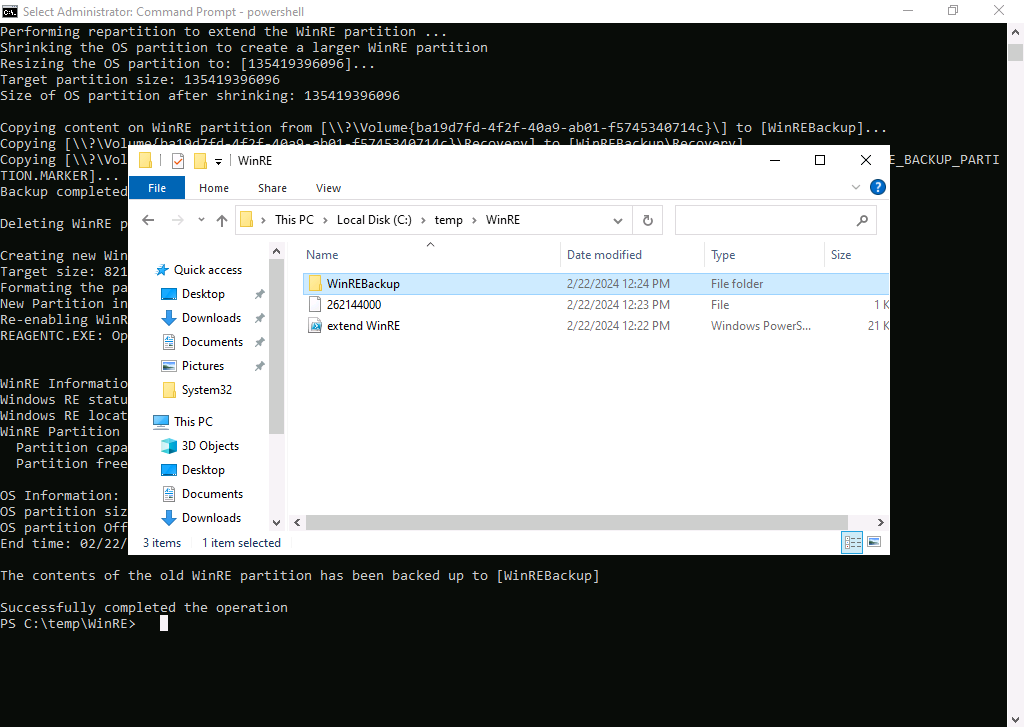

The backup folder now contains a backup of your previous Windows Recovery Environment files.

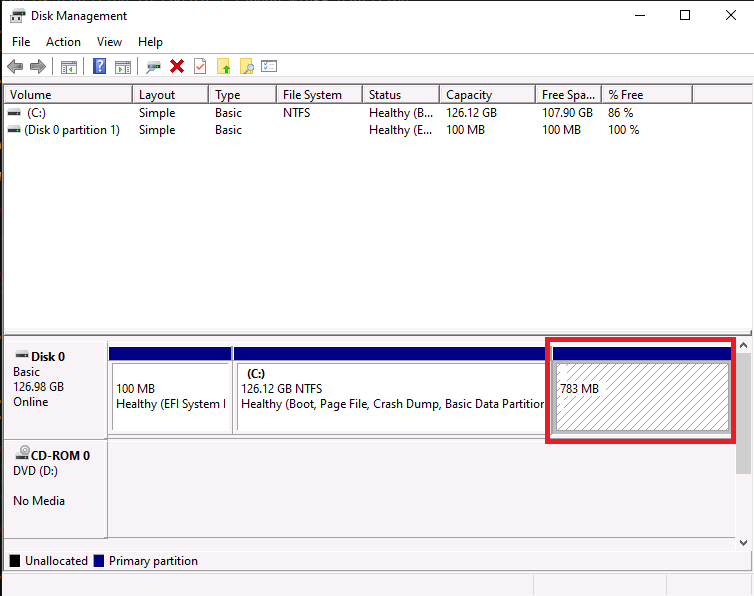

And now let’s check Disk Management. The Recovery Partition is indeed extended, but doesn’t is missing the Recovery type.

checking diskpart, it’s indeed listed as a recovery partition. So the type of partition is correct, just missing a label.

Next, I attempted to retry the Windows update on that server by clicking Retry in Windows Update…

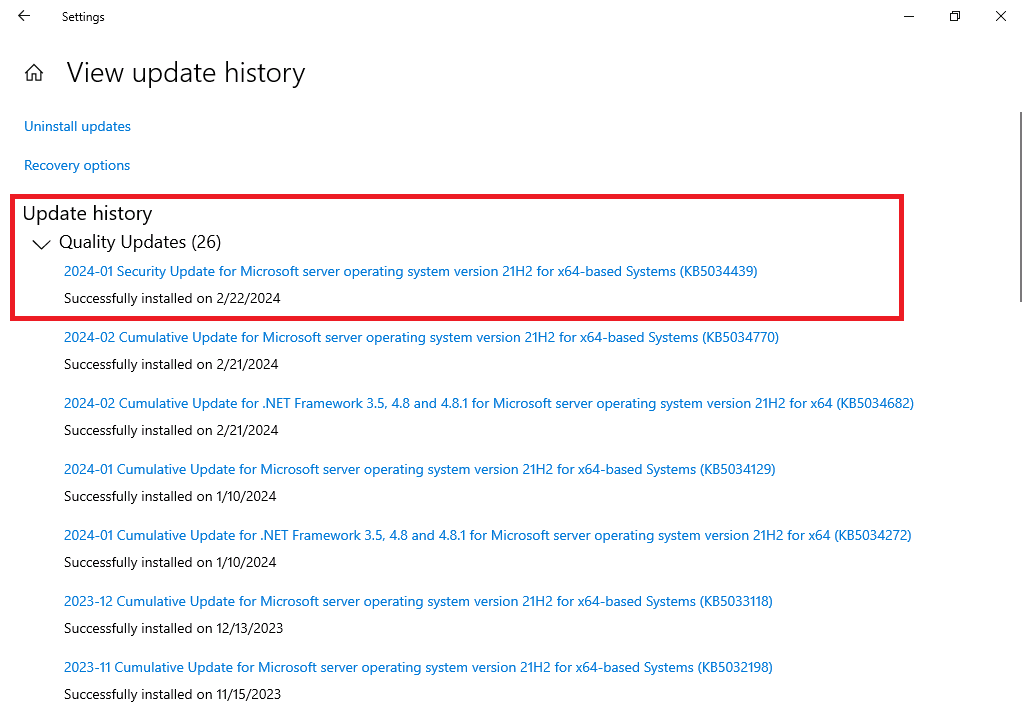

and what do you know, it installed successfully, job done!

Here’s another view from https://twitter.com/MHimken about this problem,  have a read as he’s looked into the problem some more:

https://manima.de/2024/01/winre-patching-round-2/

Side note: I wonder how Windows Autopatch will deal with this for Windows 10 or Windows 11 21H2 devices ? That’s a test I’ll do shortly and release a follow up blog post.

until then, cya!

cheers

niall

Recommended reading







This entry was posted in 21H2, 21H2, Windows 10, Windows 11, Windows Server 2022, WinRE. Bookmark the permalink.

One Response to Windows 10/11 version 21H2 and Windows Server 2022 not updating due to the size of the WinRE partition

  1. skatterbrainz says:
    February 25, 2024 at 3:36 am

    Except if you do something silly, like set PowerShell 7 as your default and then try to run that script and it implodes on Get-WmiObject. That’ll teach me to do something “modern”

    Reply

Leave a Reply

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.
